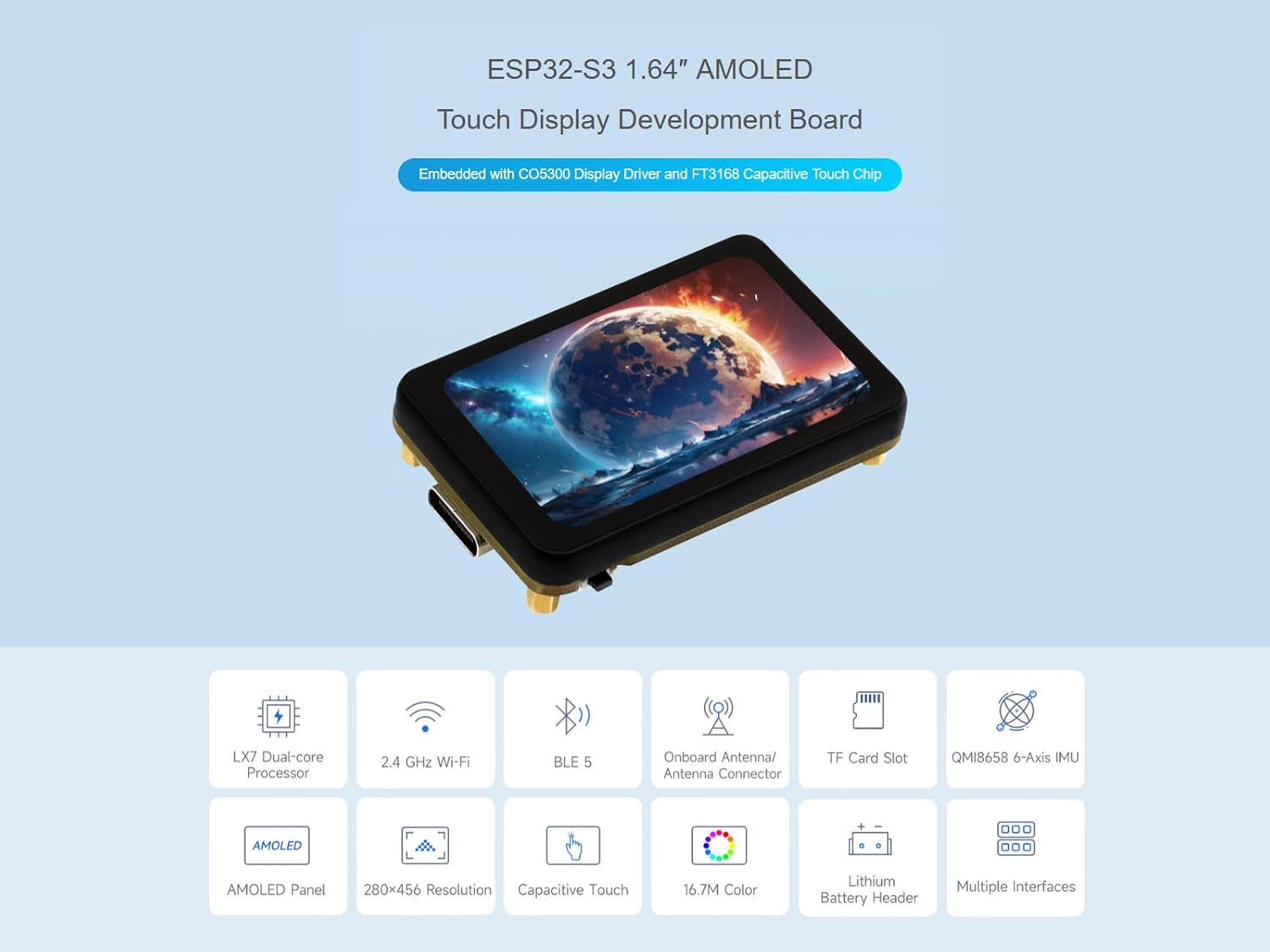

ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280×456 Resolution, 16.7M Color, QSPI Interface, Wi-Fi and BLE-5 Support, Onboard 6-Axis IMU, TF Card Slot, USB, UART, I2C, etc.
Product details
| Management number | 209079128 | Release Date | 2026/03/29 | List Price | $13.82 | Model Number | 209079128 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

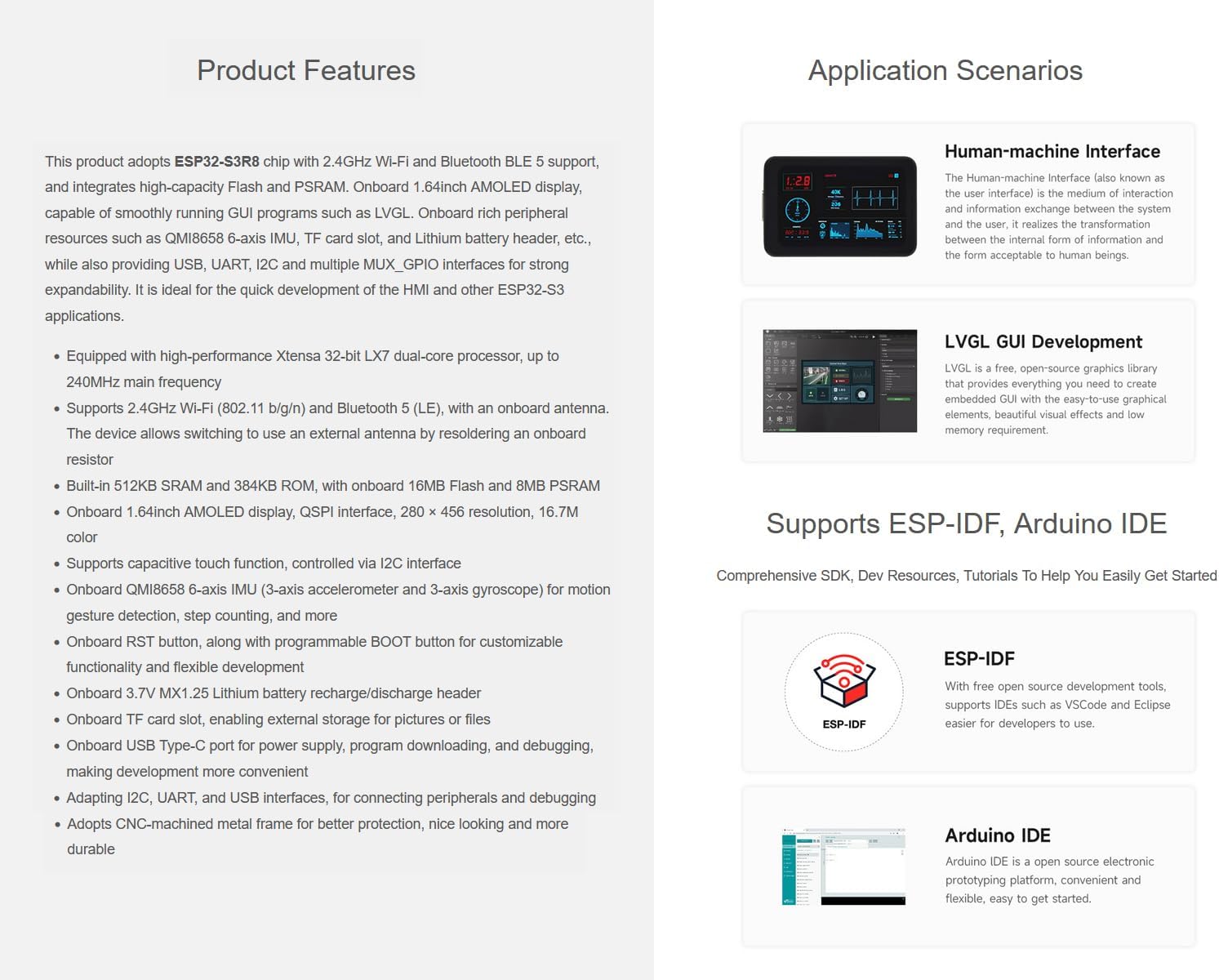

Features Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor Built-in 512KB S-RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 1.64inch AMOLED display, QSPI interface, 280 × 456 resolution, 16.7M color Supports capacitive touch function, controlled via I2C interface Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development Onboard 3.7V MX1.25 Lithium battery recharge/discharge header Onboard TF card slot, enabling external storage for pictures or files Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging Adopts CNC-machined metal frame for better protection, nice looking and more durable Package Content ESP32-S3-Touch-AMOLED-1.64 x1 11Pin black pinheader (2.54mm) x2 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
- ESP32-S3 1.64″ AMOLED touch display development board adopts ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, 32-bit LX7 dual-core processor, up to 240MHz main frequency, built-in 512KB S-RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

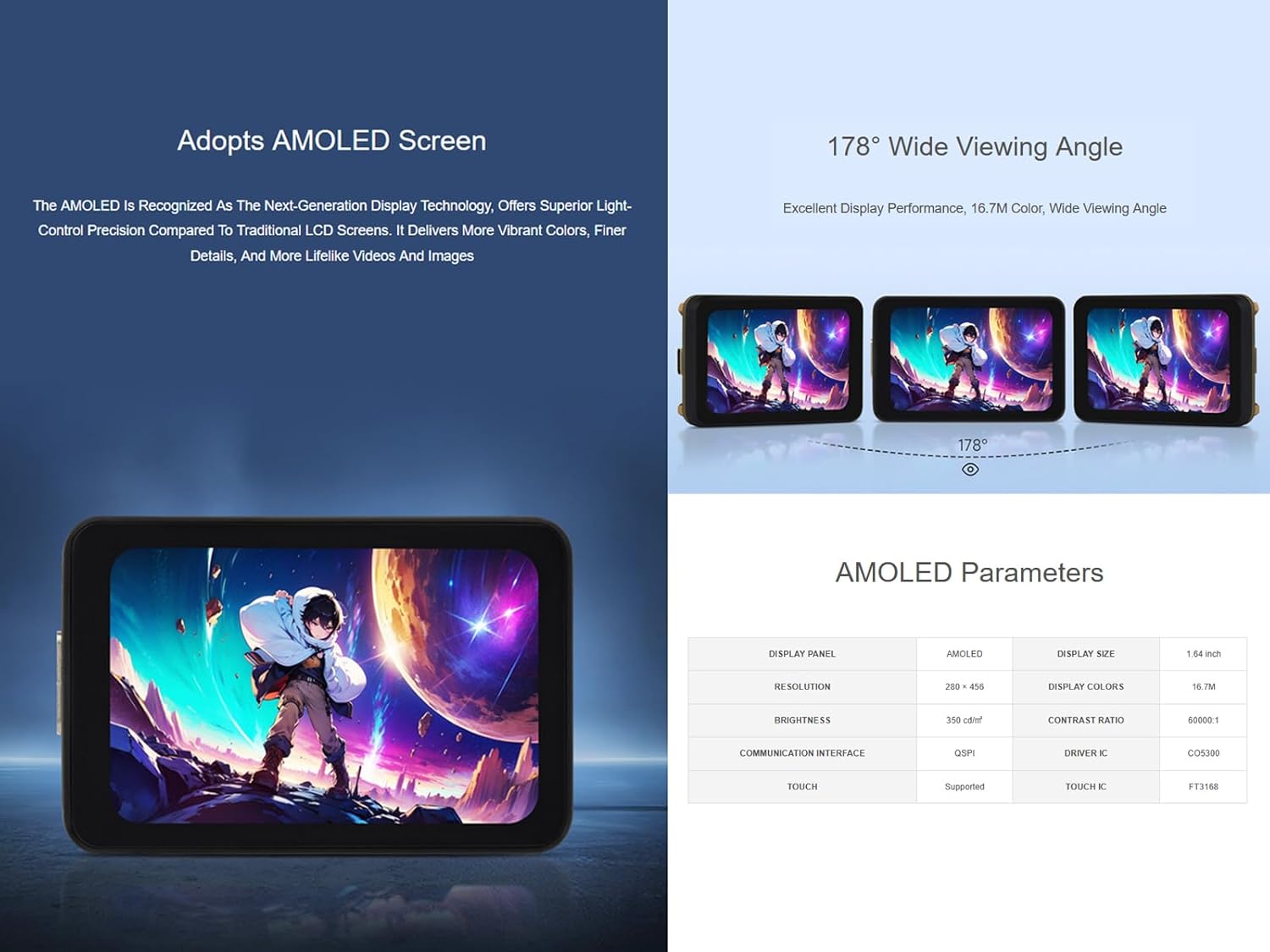

- ESP32-S3 with 1.64inch AMOLED screen, QSPI interface, 280 × 456 resolution, 16.7M color, 178° wide viewing angle. Supports capacitive touch function, controlled via I2C interface
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
- Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. Onboard TF card slot, enabling external storage for pictures or files
- Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging
| UPC | 790885236426 |
|---|---|
| Brand | waveshare |
| Model Name | ESP32-S3-1.64inch-Touch-AMOLED |
| Manufacturer | Waveshare |
